SK602 Miniature Through hole Torque Torque
Hollow flange torque transducer
Hollow flange torque transducer

SK602 Miniature Through hole Torque Torque

Model: SK602
Category: Torque Sensor
Capacity: 1,2,3,5,10, 20,30,50,100N.m
Rated Output: 1.5±10%mV/V
Product Orgin: China
The load cell can be customised for capacity, accuracy, dimension and other parameters.

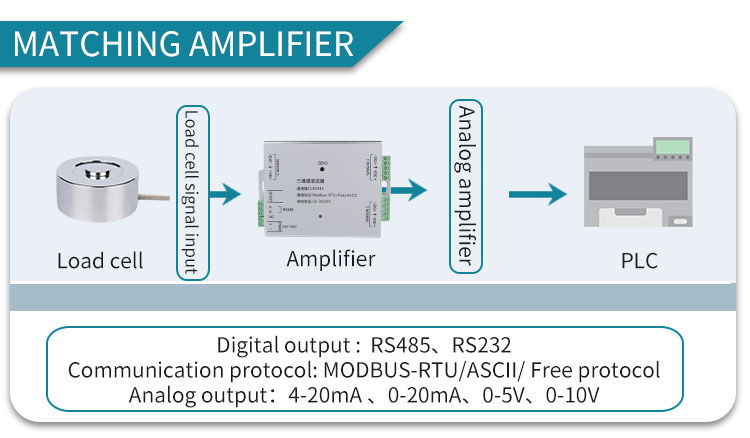

SK602 Miniature Through hole Torque Torque uses strain gauge technology to produce a mV/V signal proportional to the applied torque, and can be used in conjunction with a signal regulator to obtain ±5V, ±10V, 0-5V, 0-10V or 4-20mA outputs. Torque sensor FTE has nine rated capacities of 0-1NM / 0-2NM / 0-3NM / 0-5NM / 0-10NM / 0-20NM / 0-30NM / 0-50NM / 0-100NM to choose from, with high accuracy. Due to its compact size, this static torque sensor can be used for torque measurement where installation space is limited.

Specifications Technique
Capacity 1,2,3,5,10, 20,30,50,100N.m
Rated output 1.5±10%mV/V
Zero balance ±2% F.S.
Non-linearity 0.2%F.S.
Hysteresis 0.2%F.S.
Repeatability 0.1%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 410±20Ω
Output impedance 350±10Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 120%F.S.
Ultimate overload 150%F.S.
Cable size φ3×3000mm
