| Model: | SK04 |
| Category： | Load cell indicator |
| Comprehensive accuracy: | ＜0.01% |
| Accept Sensitivityt: | -3.6~+3.6 mV/V |
| Weight: | 0.3KG |
| Product Orgin: | China |

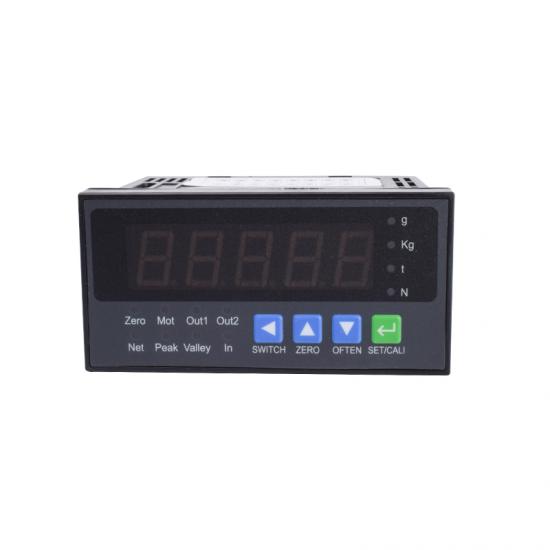

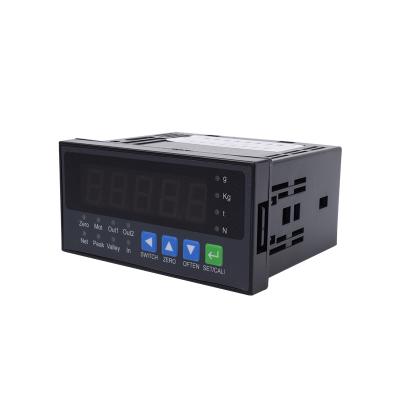

SK04 Load cell display is used for converting force measurement signal into digital communication signal, standard analog output signal and simple control.
The analog output signal can be selected from 0-20mA, 4-20mA, 0-10V, 1-5V, and the digital communication interface can be selected from RS485 or RS232.
The single row of 5-bit LED digital tube displays the real-time measurement value, peak value, output current value and I/O status information respectively.
Can be driven by the upper computer output controller, can partially replace PLC. The controller adopts DC24V power supply, voltage width ±5V, more safe and stable.
| Specifications | Technique |
| Display | Single-row 5-bit LED display |
| Readability | 1/30000 |
| Output linear | ＜0.002% |
| Comprehensive accuracy | ＜0.01% |
| A/D Conversion speed | 10,40,840 times per second |
| Accept Sensitivity | -3.6~+3.6 mV/V |
| Input load | 1-6 350Ωsensors |
| Output specification | 0-10V / 4-20mA |
| Temp.effect on output | ≤10ppm /℃ |
| Temp.effect on zero | ≤10μV /℃ |
| Excitation voltage | 5VDC |
| Power supply | 24±5VDC |
| Power waste | ≤10W |
| Operation temp range | -20-70℃ |
| Weight approx. | 0.3kg |
The Size of Mounting Hole
