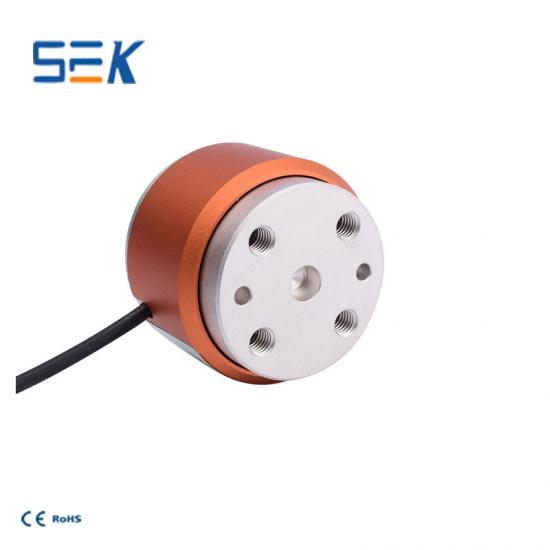

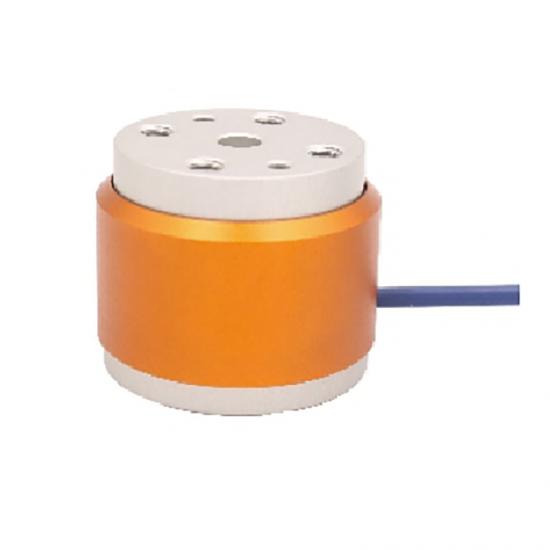

SK602B Through hole Torque Sensors

Model: SK602B
Category: Static Torque Sensor
Capacity: 0.1,0.2,0.5,1,2,3,5,10N.m
Rated Output: 1.5±10%mV/V
Product Orgin: China
The load cell can be customised for capacity, accuracy, dimension and other parameters.

SK602B Through hole Torque Sensors  play a crucial role in industries such as automotive, aerospace, manufacturing, and robotics. Static torque sensors are engineered to deliver exceptional precision and accuracy in measuring torque. They can detect even the slightest changes in rotational force, making them ideal for applications that require precise torque control and analysis. Static torque sensors are crafted with a compact and robust design, making them suitable for installation in tight spaces and harsh environments. They are built to withstand vibrations, shocks, and extreme temperatures, ensuring their reliability and longevity even in demanding operating conditions.

Specifications Technique
Capacity 0.1,0.2,0.5,1,2,3,5,10Nm
Rated output 1.5±10%mV/V
Zero balance ±2% F.S.
Non-linearity 0.1%F.S.
Hysteresis 0.05%F.S.
Repeatability 0.05%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 350±5Ω
Output impedance 350±5Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 120%F.S.
Ultimate overload 150%F.S.
Cable size φ3×3000mm
Material aluminum alloy
