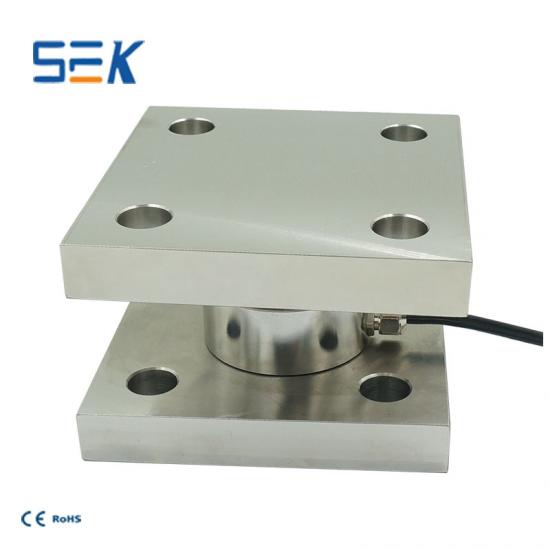

SK521 Weighing modules load cell

Model: SK521
Category: Weighing module
Capacity: 1,2,5,10,20,50,75,100 kN
Rated Output: 1.5±10%mV/V
Product Orgin: China
The load cell can be customised for capacity, accuracy, dimension and other parameters.

SK521 Weighing modules load cell is made of stainless steel and is based on strain gauge technology and is available in 1kN / 2kN / 10kN / 20kN / 50kN / 75kN / 100kN measuring ranges for force measurement. The weighing modules force sensor is widely used in bench scales, counting scales and other weighing equipment. Customised design services are available to meet the needs of different applications.

Specifications Technique
Capacity 1,2,5,10,20,50,75,100 kN
Rated output 1.5±10%mV/V
Zero balance ±0.03 mV/V
Non-linearity 0.2%F.S.
Hysteresis 0.1%F.S.
Repeatability 0.1%F.S.
Creep(30min) 0.05%F.S.
Temp.effect on output 0.05%F.S./10
Temp.effect on zero 0.05%F.S./10
Input impedance 780±20Ω
Output impedance 700±10Ω
Insulation 5000MΩ/100VDC
Recommended excitation 5~15V
Maximum excitation 20V
Compensated temp range -10~60
Operation temp range -20~80
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size φ4×4000mm
Material Stainless Steel
IP Class IP67(Customizable IP68)
